MIX COOK machine

Series

MIX COOK
MIX COOK V

Twin shaft
paddle/ribbon cooking mixers with double jacket

Capacity range

500-4800

Liters

/

Batch Range

375-3600

Liters

The MIX Cook series is an innovative two-shaft cooking mixers equipped with a steam or oil heating jacket as standard, which allows for quick and even mixing and cooking of many products.

It is currently one of the best solutions in the field of food heat treatment, which allows to achieve high quality, reproducible results and to meet the highest standards of food production safety. Thanks to the possibility of equipping the machine with paddle or ribbon shafts with the option of equipping it with an innovative system of scrapers preventing burning, it can be used for cooking various products from sauces, purées, baby food, vegetables, rice, grains or minced meat and offal.

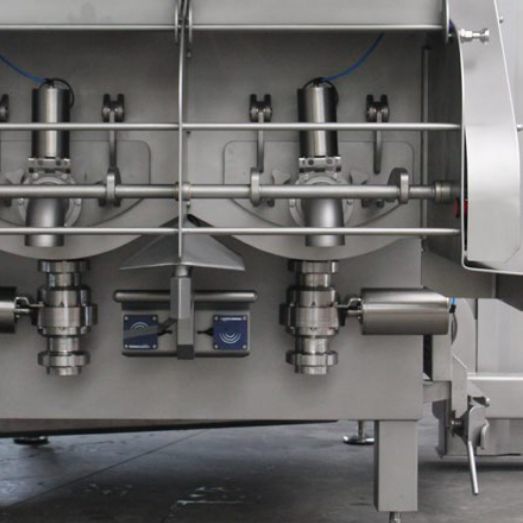

Unloading

The N&N's mixers of the MIX Cook series, thanks to the two built-in discharge flaps and low clearance between the shafts and the mixing bowl, enable fast and safe ejection of the cooked product, while leaving only minimal amount of product between the individual batches.

Control

The MIX Cook series mixers are equipped as standard with a colour HMI touch screen, which is user-friendly and intuitive to use. Dedicated soft ware with advanced cooking options and process monitoring and control equipment allows you to maximize product efficiency. Possibility of recipe management and access control allows to maintain repeatability of individual product batches.

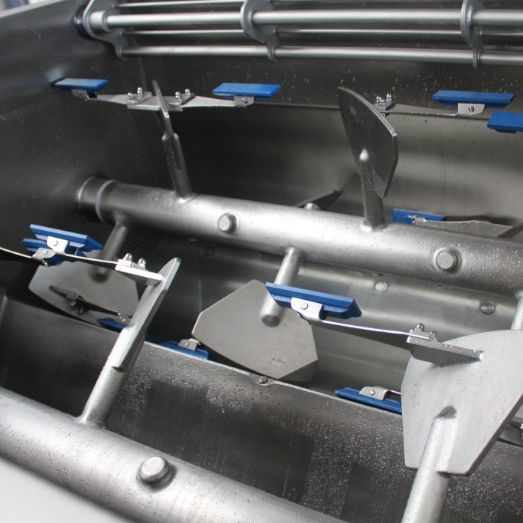

Scrapers

The MIX Cook series mixers can be optionally equipped with an innovative system of scrapers consisting of a springy claw and a special high-temperature-resistant plastic, which perfectly scrape the product from the whole heating surface of the jacket and prevent the product from burning.

Direct steam injection

All MIX Cook series machines can be equipped with a system of hygienic nozzles for direct steam injection into the product, which can accelerate the process even several times without the eff ect of burning.

Options

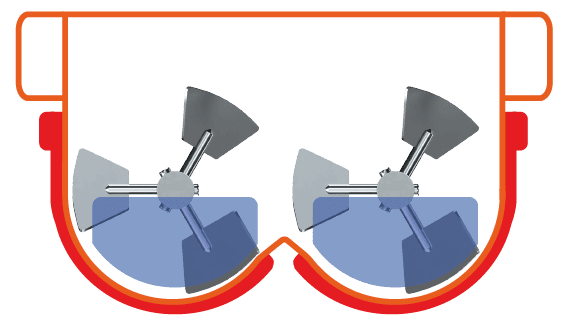

Parallel twin shafts

In the MIX Cook series mixers the mixing process is carried out by two twin parallel paddle or ribbon s, placed at the same heights. The characteristic feature of this series of machines is the possibility to set the speed and direction of rotation independently for each shaft.

  • MIX COOK S - Mixers
  • MIX COOK SV - Vacuum mixers
  • Mixers

    MIX COOK S

    Technical data

    Capacity [l]500
    Maximum load [l]375
    Installed power [kW]2x3
    Rotation speed of the shafts [obr/min]5-40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1220
    BUSCH vacuum pump [m3/h]25
    Current protection25
    Loading optionsPZ 2/250
    Steam installationIncludes - Spirax Sarco
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]750
    Maximum load [l]560
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-36
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1620
    BUSCH vacuum pump [m3/h]45
    Current protection32
    Loading optionsPZ 2/250
    Steam installationIncludes - Spirax Sarco
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1000
    Maximum load [l]750
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1920
    BUSCH vacuum pump [m3/h]45
    Current protection32
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1250
    Maximum load [l]940
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2070
    BUSCH vacuum pump [m3/h]72
    Current protection32
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1600
    Maximum load [l]1200
    Installed power [kW]2x7,5
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3220
    BUSCH vacuum pump [m3/h]72
    Current protection40
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2100
    Maximum load [l]1575
    Installed power [kW]2x11
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3720
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2600
    Maximum load [l]1950
    Installed power [kW]2x11
    Rotation speed of the shafts [obr/min]3-25
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4570
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3200
    Maximum load [l]2400
    Installed power [kW]2x15
    Rotation speed of the shafts [obr/min]3-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]5620
    BUSCH vacuum pump [m3/h]160
    Current protection100
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3600
    Maximum load [l]2850
    Installed power [kW]2x15
    Rotation speed of the shafts [obr/min]2-20
    Standard controlsPLC with HMI
    Net weight of the machine [kg]6540
    BUSCH vacuum pump [m3/h]205
    Current protection100
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]4800
    Maximum load [l]3600
    Installed power [kW]2x22
    Rotation speed of the shafts [obr/min]2-18
    Standard controlsPLC with HMI
    Net weight of the machine [kg]7340
    BUSCH vacuum pump [m3/h]205
    Current protection120
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
  • Vacuum mixers

    MIX COOK SV

    Technical data

    Capacity [l]500
    Maximum load [l]375
    Installed power [kW]2x3
    Rotation speed of the shafts [obr/min]5-40
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1220
    BUSCH vacuum pump [m3/h]25
    Current protection25
    Loading optionsPZ 2/250
    Steam installationIncludes - Spirax Sarco
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]750
    Maximum load [l]560
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-36
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1620
    BUSCH vacuum pump [m3/h]45
    Current protection32
    Loading optionsPZ 2/250
    Steam installationIncludes - Spirax Sarco
    Unload200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1000
    Maximum load [l]750
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]1920
    BUSCH vacuum pump [m3/h]45
    Current protection32
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1250
    Maximum load [l]940
    Installed power [kW]2x5,5
    Rotation speed of the shafts [obr/min]4-30
    Standard controlsPLC with HMI
    Net weight of the machine [kg]2070
    BUSCH vacuum pump [m3/h]72
    Current protection32
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]1600
    Maximum load [l]1200
    Installed power [kW]2x7,5
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3220
    BUSCH vacuum pump [m3/h]72
    Current protection40
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2100
    Maximum load [l]1575
    Installed power [kW]2x11
    Rotation speed of the shafts [obr/min]3-28
    Standard controlsPLC with HMI
    Net weight of the machine [kg]3720
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]2600
    Maximum load [l]1950
    Installed power [kW]2x11
    Rotation speed of the shafts [obr/min]3-25
    Standard controlsPLC with HMI
    Net weight of the machine [kg]4570
    BUSCH vacuum pump [m3/h]100
    Current protection63
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3200
    Maximum load [l]2400
    Installed power [kW]2x15
    Rotation speed of the shafts [obr/min]3-22
    Standard controlsPLC with HMI
    Net weight of the machine [kg]5620
    BUSCH vacuum pump [m3/h]160
    Current protection100
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]3600
    Maximum load [l]2850
    Installed power [kW]2x15
    Rotation speed of the shafts [obr/min]2-20
    Standard controlsPLC with HMI
    Net weight of the machine [kg]6540
    BUSCH vacuum pump [m3/h]205
    Current protection100
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
    Capacity [l]4800
    Maximum load [l]3600
    Installed power [kW]2x22
    Rotation speed of the shafts [obr/min]2-18
    Standard controlsPLC with HMI
    Net weight of the machine [kg]7340
    BUSCH vacuum pump [m3/h]205
    Current protection120
    Loading optionsPZ 2/250 or PW 2/1000
    Steam installationIncludes - Spirax Sarco
    Unload2x200L
    Opening/Closing coversPneumatic
    Required pressure [bar]6
